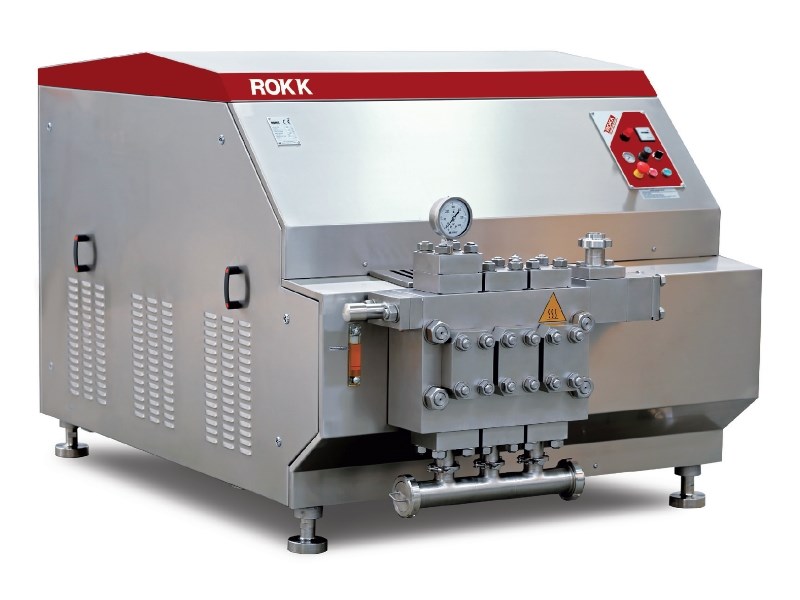

8 Series Homogeniser (7,500 – 25,000 litres / hour)
The ROKK 8 Series high-pressure homogenizers and piston pumps have excellent performance and reliability in the latest design concept.
ROKK 8 Series homogenizers / piston pumps are available with capacities from 7,500 – 25,000 litres / hour as no stage, one stage or double stage depending on the application.

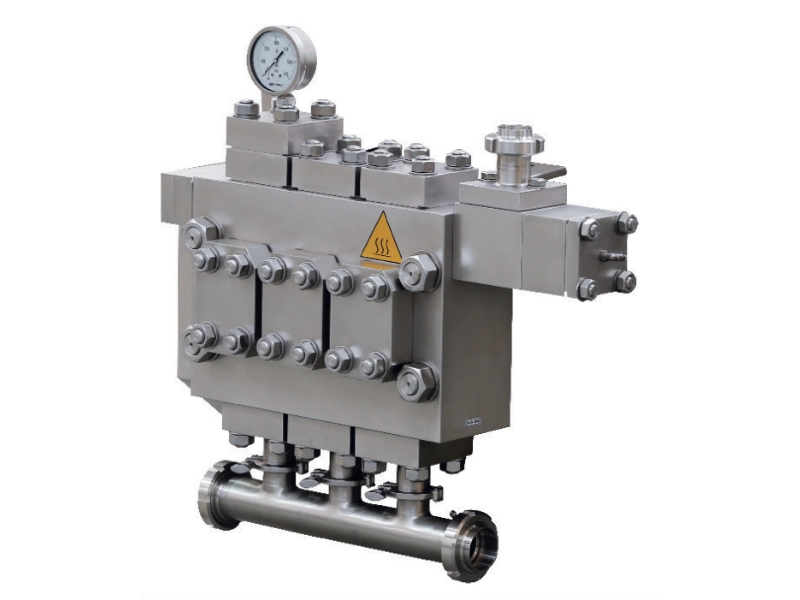

MonoBlock
The MonoBlock (compression head) is manufactured out of a high tensile, corrosion resistant, forged, ultra-high quality stainless steel and checked for imperfections using ultrasound equipment. The compression head for sanitary applications provides an in-line flow pattern and minimises the number of sealed areas. The block features removable top, bottom and front flanges for easy maintenance and has an ultra-clean design without dead ends. The semi-spherical valves system allows smooth machine operation, for both low and high-viscosity products.
Specifications
| Number of plungers | 3 |
| Capacity | From 7500 - 25000 lt/h |
| Weight | 2500 kg |
| Water Consumption | 90 l/h |
| Lubrication Oil ISO VG 150 | 32 l |
| Gearreducer Oil ISO VG 320 | 13.0 l |
| Motor Power | 75 kW |
Machine Features
- Designed according to the EU safety rules (CE standards)
- Engineered, manufactured and tested according to ISO EN 9001 Quality System
- Engineered and designed for easy maintenance and cleaning (CIP and SIP)
- Suitable for abrasive and viscous products
- Ceramic-coated stainless steel plungers
- Cobalt carbide material suction and delivery valves & valve seats

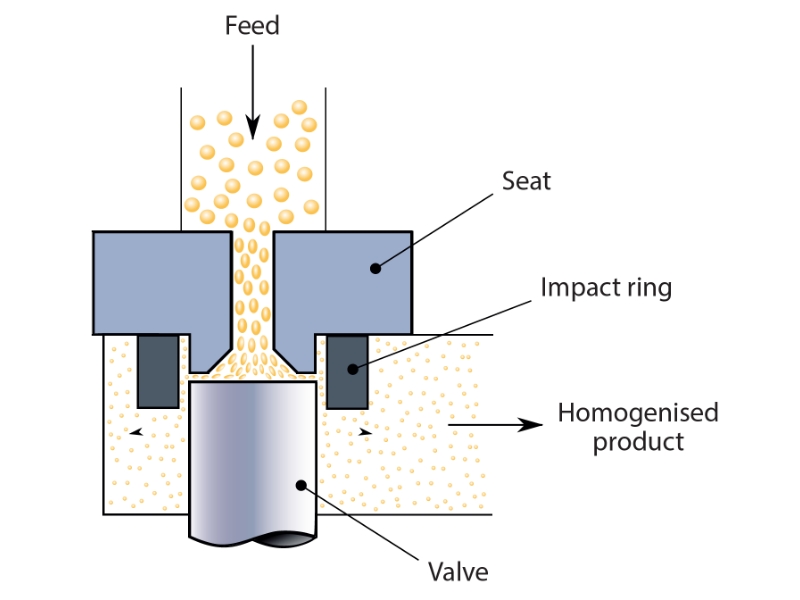

- Tungsten Carbide homogenising valves
- Compression Monoblock head formed by single forged block in special stainless steel
- Automatic homogenisation pressure controller with pneumatic adjustment (optional manual)
- Stainless steel construction (Frame) and electrical panel board
- Less footprint with ergonomic design
- Sanitary design analogue diaphragm high-pressure gauge
- V belts drive train and gearbox speed reduction unit
- AC motor drive
Need spares for this machine?
DairyBits stocks a host of spare parts for dairy and ice cream machinery.
With international shipping and door-to-door courier services, Dairy Bits can supply them quickly before any major disruption occurs. Click below to go to the site.
Servicing for this machine
All ROKK machines come with a one year warranty and the business has experienced service engineers, fully trained in both electrics and refrigeration, on the road and on call 24 hours a day should they be required.
