RR 2000

Enquire

Rotary filler

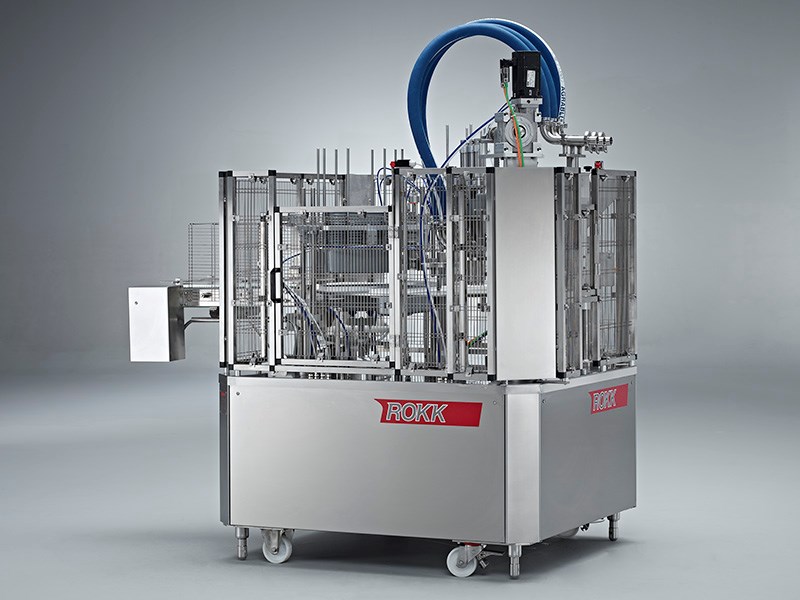

The ROKK RR2000 is a versatile yet compact rotary filler that is equally capable of being utilised as either a high-capacity (2,400 pieces per hour, per row) or high-volume (5 litre maximum fill volume) machine. To ensure that it is able to constantly run while producing a quality finished product, no expense has been spared on the construction with only the finest, well-known components and premium stainless steel and aluminium being used throughout.

The RR2000 consistently maintains accurate weight control and aesthetically pleasing fill designs and despite its wide-ranging functionality, is remarkably easy to operate due to its manual electrical control panel which can accommodate, and easily switch between, 10 predefined filling programs.

For manufacturers offering a large and varied range of ice cream or sorbet, the RR2000 offers the essential reliability, performance and flexibility in a single package.

Maximum capacity 2400 pieces/hr (per row)
Minimum fill volume 50ml
Maximum fill volume 5 ltr
Maximum Cup size (L x W x H) 360mm 180mm 150mm
Number of rows possible 4 rows
Dimensions (L x W x H) 143cm 125cm 200cm
Electrical consumption 2kW
Air consumption 550 ltr/min
Weight 950 kg

Primary benefits

High output: Due to the interchangeable filling trays, the RR2000 offers controlled high output capabilities of either capacity or volume. It is possible to run up to four rows at a time, giving a total capacity of 8,400 pieces per hour.

Consistent aesthetic designs: First impressions count for everything and the RR2000’s high-quality components provide for a consistent, aesthetically pleasing product design with every fill.

Well engineered and highly reliable: Every component and material used in the construction of the RR2000 is of the highest possible standard to ensure extreme reliability day-in, day-out.

Simple controls: All of the controls are electro-mechanical which keeps the machine simple, reliable and very easy to maintain without the need of expert engineering. The use of quick release pneumatic fittings allows a product change-over to be completed in around 10 to 15 minutes.

Over table workings: The above-table-workings use a well thought out combination of mechanical movements running from the heart of the machine and versatile pneumatics. ROKK only uses globally renowned Festo pneumatics on its machines to ensure worldwide back-up and support. Simultaneously, the unique twin grip container dispensing system makes light work of problem pots and lids.

Filling heads: The filling assembly is easily adaptable to suit individual needs and can be fitted with a wide range of nozzles for ripples, inclusions and a multitude of other options including colour separation. ROKK can also provide a wide range of nozzles for creating unique presentations of ice cream and sorbet.

Drive/Engine: The complete drive system is mechanical and uses a combination of standard off-the-shelf gearboxes and bespoke lift cams to ensure a smooth, robust and accurate movement.

Chassis: The chassis of the RR2000 is built entirely out of stainless steel and aluminium using plates up to 20mm thick.

Change parts: ROKK can supply a wide range of change parts including tubs, cups and cones from 50ml to 5000ml.

Advanced options

  • Filler options: ripple inclusions fluted windmill bespoke
  • Chocolate spray
  • Dry ingredients feeder
  • Cup spinners
  • Sauce dispenser
  • Chocolate tank
  • Heat sealer for tamper proof lids
  • Crimping device
  • Ink jet coding

Additional information

For more information about the ROKK RR2000 rotary filler, please call +44 (0)1455 220179 or email sales@rokk-processing.com



Need spares for this machine?

DairyBits stocks a host of spare parts for dairy and ice cream machinery.

With international shipping and door-to-door courier services, Dairy Bits can supply them quickly before any major disruption occurs. Click below to go to the site.

Servicing for this machine

All ROKK machines come with a one year warranty and the business has experienced service engineers, fully trained in both electrics and refrigeration, on the road and on call 24 hours a day should they be required.

“With the service, the quality and innovation of the machine as well as the end product, I would highly recommend any ROKK machinery to any ice cream manufacturer.”

Garry Buller, Managing Director of Yarde Farm Ice Cream
